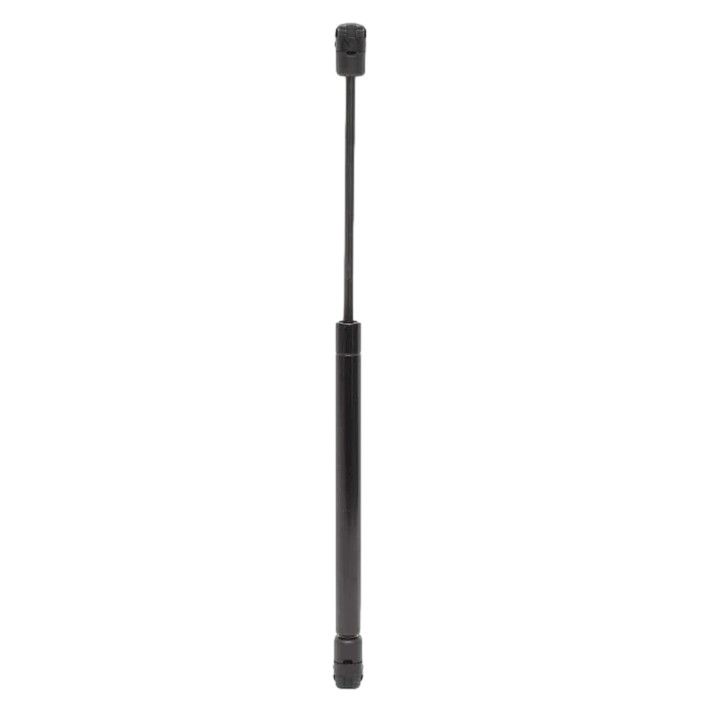

Gas Strut GN8-120 30# Force - New Surplus

Gas Strut GN8-120 30# Force is a reliable and versatile gas spring designed for a variety of applications, including RV hatches, covers, and light-duty equipment. Here are the key features and specifications:

Key Features

• Black Nitride Shaft: Provides superior corrosion resistance, ensuring durability and longevity.
• Standard 10mm Ball Socket Ends: Allows for easy installation and compatibility with a wide range of applications.
• Versatile Use: Ideal for RVs, campers, hatches, and other lightweight applications requiring controlled lifting and lowering.

Specifications

• Extended Length: 12.00 inches (304.8 mm)
• Stroke: 3.50 inches (88.9 mm)
• Force: 30 pounds (133.45 N)
• Rod Diameter: 8 mm
• Body Diameter: Approximately 18 mm

This gas strut combines durability with smooth operation, making it an excellent choice for applications requiring reliable support and movement control. The black nitride coating on the shaft ensures enhanced resistance to rust and wear, even in challenging environments.

When selecting this gas strut, consider the weight and size of the object it will support to ensure optimal performance. Proper installation is crucial for achieving the best results in your specific application.
