Dometic 9 Gallon Water Heater (Gas & Electric) WH-9GEA

9 GALLON WATER HEATER (XT GAS & ELECTRIC), DOOR NOT INCLUDED WATER HTR WH-9GEA XT SPThe Dometic WH-9GEA is a market-leading water heater for mobile applications. Its robust burner system generates hot water quicker and for longer to ensure a comfortable and convenient showering experience while you're away from home. Direct replacement for: 90074, 90073, 90074SU, 90072, 90071, 90072SU, 90068. Doors recommended: 94050 (Arctic White) 94010 (Black). If this installation is in place of an old water heater, and adaptor brackets are needed, we recommend 94016 (Arctic White) 94067 (black).

• MORE HOT WATER
• LONGER SHOWERS
• ROBUST

QUICK HEATING

Burner system heats water quickly and reduces wait time

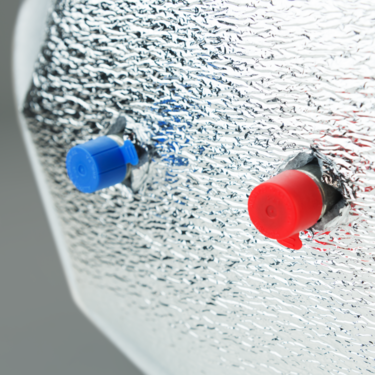

LOW MAINTENANCE

Aluminum tank requires no anode rod

EXTRA HEAT

Electric heating element provides additional input

ADVANCED TECHNOLOGY

Enjoy 33 % more hot water thanks to the XT mixing valve

• 10,000 BTU gas input
• 1400 W electric input
• Aluminum tank is lightweight and corrosion resistant
• Mixing valve provides 33 % more hot water than other 6 gal. water heaters
• Electronic ignition gas burner system
• Easy access low profile door
• 6 gal. cut-out: 12-3/4"H x 12-3/4"W x 20-7/8"D

GENERAL

SKU number 9600024380
Model WH-9GEA
Model on label WH-9GEA
Scope of delivery Water Heater with Manual
Product Description 9 Gallon Water Heater (XT Gas & Electric), Door not Included
Heating Method Gas, Electric

DIMENSIONS

Dimensions product depth 24 "
Dimensions product height 12.62 "
Dimensions product width 12.62 "
Net weight 25 lbs
Tank Size 6.00 Gal

ELECTRICAL

Input voltage (DC) 12 V
Rated input current (DC) 1 A

PERFORMANCE

Fuel type Liquid gas LPG
Power consumption - Heating mode 1400.00 W
Fuel consumption peak 3.5 cf/h

ADDITIONAL

Certificates CSA

LOGISTICS

EAN-13 0713814271428
Dimensions parcel height 13 1/2 "
Dimensions parcel width 16 "
Parcel weight 25 lbs
