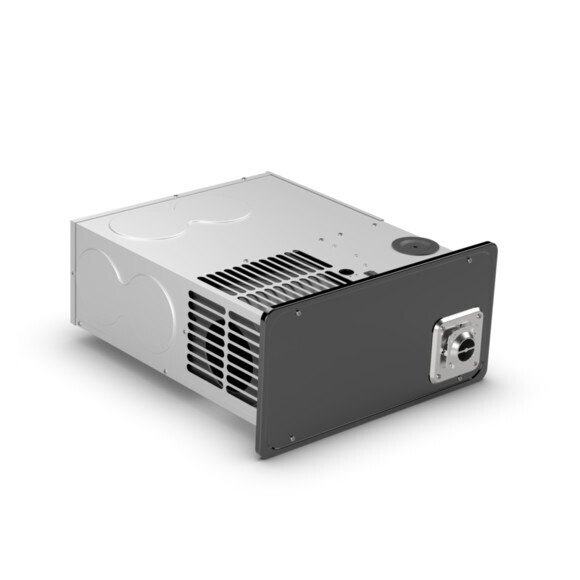

Dometic 25111 Medium Furnace 25,000 BTU 9600000886

DOORED FURNACE 25,000 BTU, USES LP GAS, DC VOLTAGEFUR, DFMD25111 SPEngineered for easy maintenance and superior air delivery. Its compact size offers installation convenience. The Dometic DFMD 25111 Medium Furnace now comes with a durable stamped steel door that is built to last (select models only).

• LOW-PROFILE
• QUIET
• FLEXIBLE INSTALLATION

• Horizontal or vertical configuration for flexible installation
• Quiet operation thanks to reduced air turbulence
• Low-profile, compact design: 7-3/8 in. x 16-1/2 in. x 20 in. (H x W x D)
• 12 V DC powered unit
• 25,000 BTU
• Outside access door required (sold separately)

SPECIFICATIONS

GENERAL

SKU number 9600000886
Model DFM
Model on label DFMD25111
US Item Name 35525
Scope of delivery Furance, Duct Adaptors and Manual
Product Description Doored Furnace 25,000 BTU, Uses LP Gas, DC Voltage

DIMENSIONS

Dimensions product depth 20 "
Dimensions product height 7 "
Dimensions product width 16 1/2 "
Net weight 33.5 lbs

ELECTRICAL

Voltage Type DC
Input voltage (DC) 12 V
Rated input current (DC) 7.5 A

PERFORMANCE

Fuel type Liquid gas LPG
Fuel consumption peak 8.80 cf/h

ADDITIONAL

Certificates ETL
Door Style Door
Furnace Size Medium

LOGISTICS

EAN-13 0713814220402
Dimensions parcel depth 26 "
Dimensions parcel height 11 1/16 "
Dimensions parcel width 20 1/4 "
Parcel weight 33.5 lbs
