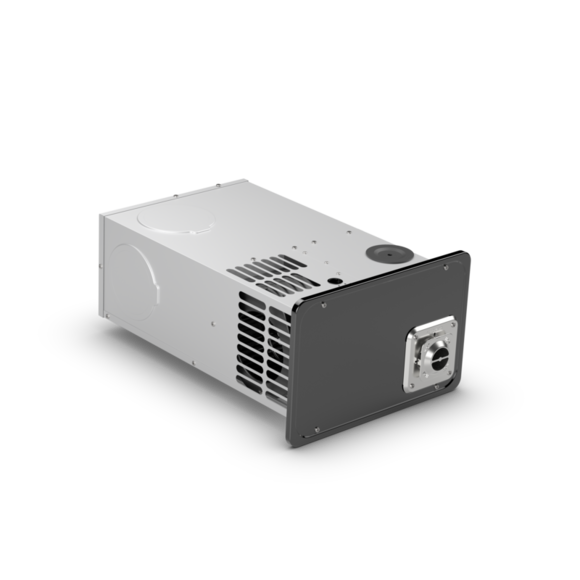

Dometic 20111 Small Furnace 18,000 BTU ( 9600001165 )

DOORED FURNACE 18,000 BTU, USES LP GAS, DC VOLTAGEFUR, DFSD20111 SPEngineered for easy maintenance and superior air delivery. Its compact size offers installation convenience. The Dometic DFSD 20111 Small Furnace now comes with a durable stamped steel door that is built to last (select models only).

• LOW-PROFILE
• QUIET
• FLEXIBLE INSTALLATION

• Horizontal or vertical configuration for flexible installation
• Quiet operation thanks to reduced air turbulence
• Low-profile, compact design: 7 in. x 12 in. x 20 in. (H x W x D)
• 12 V DC powered unit
• 18,000 BTU
• Outside access door required (sold separately)

SPECIFICATIONS

GENERAL

SKU number 9600001165
Model DFS
Model on label DFSD20111
US Item Name 38918
Scope of delivery Furance, Duct Adaptors and Manual
Product Description Doored Furnace 18,000 BTU, Uses LP Gas, DC Voltage

DIMENSIONS

Dimensions product depth 20 "
Dimensions product height 7 "
Dimensions product width 12 "
Net weight 20.8 lbs

ELECTRICAL

Voltage Type DC
Input voltage (DC) 12 V
Rated input current (DC) 4.8 A

PERFORMANCE

Fuel type Liquid gas LPG
Fuel consumption peak 6.80 cf/h

ADDITIONAL

Certificates ETL
Door Style Door
Furnace Size Small

LOGISTICS

EAN-13 0713814220792
Dimensions parcel depth 26 "
Dimensions parcel height 11 1/16 "
Dimensions parcel width 15 3/4 "
Parcel weight 23.9 lbs
