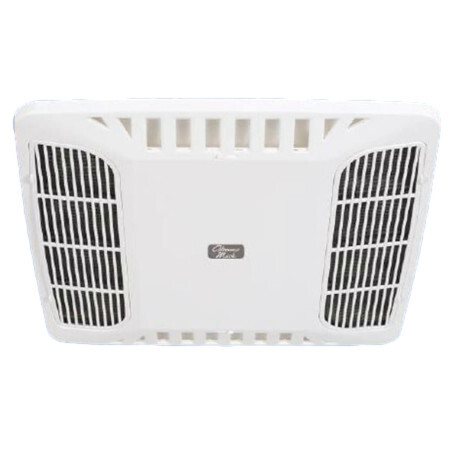

ChillGrille Plenum Only Ceiling Assembly for Straight-Thru Ducting (8430A6301)

The Coleman Mach Assembly is a plenum only ceiling assembly for straight-thru ducting air conditioner systems.

• Open the specially designed louvers to channel cool air straight down into the cabin
• Close the louvers to divert cool air through your existing duct system
• Exclusive EZReach Filter System provides quick access to the washable air filter.
  • Simply loosen the fastener and swing out the grille to remove the filter
• Easy installation with fully illustrated instructions
• The slender profile provides plenty of overhead clearance
• Front / Back air discharge
• Replaces: 8330B6301 and 8430-6301
• Voltage: 120 VAC / 60 Hz
• Control Voltage: 12 VDC
• Works with Thermostat (sold separately): 8530A3451
• Works with Add-On Heat Kits (sold separately):
  • For 47000 series: 47233-4551
  • For all others but 47000 series: 9233A4551
• Assembly Color: White
• Weight: 5 lbs

Note: For this application, you will need you will need either Control Kit (heat pump) 9530A751 or Control Kit (air conditioner) 9330C755.
Note: The control box does not provide 12 VDC for the thermostat, this will need to be supplied by the application.
