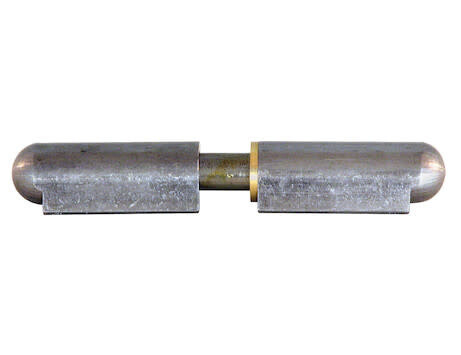

Buyers Steel Weld on Lift Off Bullet Hinge w/Steel Pin & Brass Bushing - 1.46 x 10.24" (FSP260)

FSP260 Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing - 1.46 x 10.24 Inch

• Heavy duty steel construction
• Brass bushing for long lasting wear
• Ideal for trailer doors/gates, tool cabinets, and other enclosures
• Compact, strong and reliable
• Multiple sizes available to fit your application

Specifications:

• Bushing Material Brass Finish Plain
• Greasable - No
• Hinge Length 10.24"
• Material Carbon Steel
• Mounting Type Weld
• Overall Diameter 1.10"
• Pin Diameter2 0.75"
• Pin Length A 4.53"
• Pin Length B 2.87"

Pin Material Carbon
Steel Thickness 1.46"
Shipping Weight 2.93 lb

Buyers Products Steel Weld-On Bullet Hinge (also known as a lift-hinge) is ideal for trailer doors/gates and tool cabinets. The hinge is constructed from steel with a steel pin and brass bushing. They are     available in multiple sizes to fit your application.

Product Common Use: Trailer Doors, Trailer Gates, Tool Cabinets
