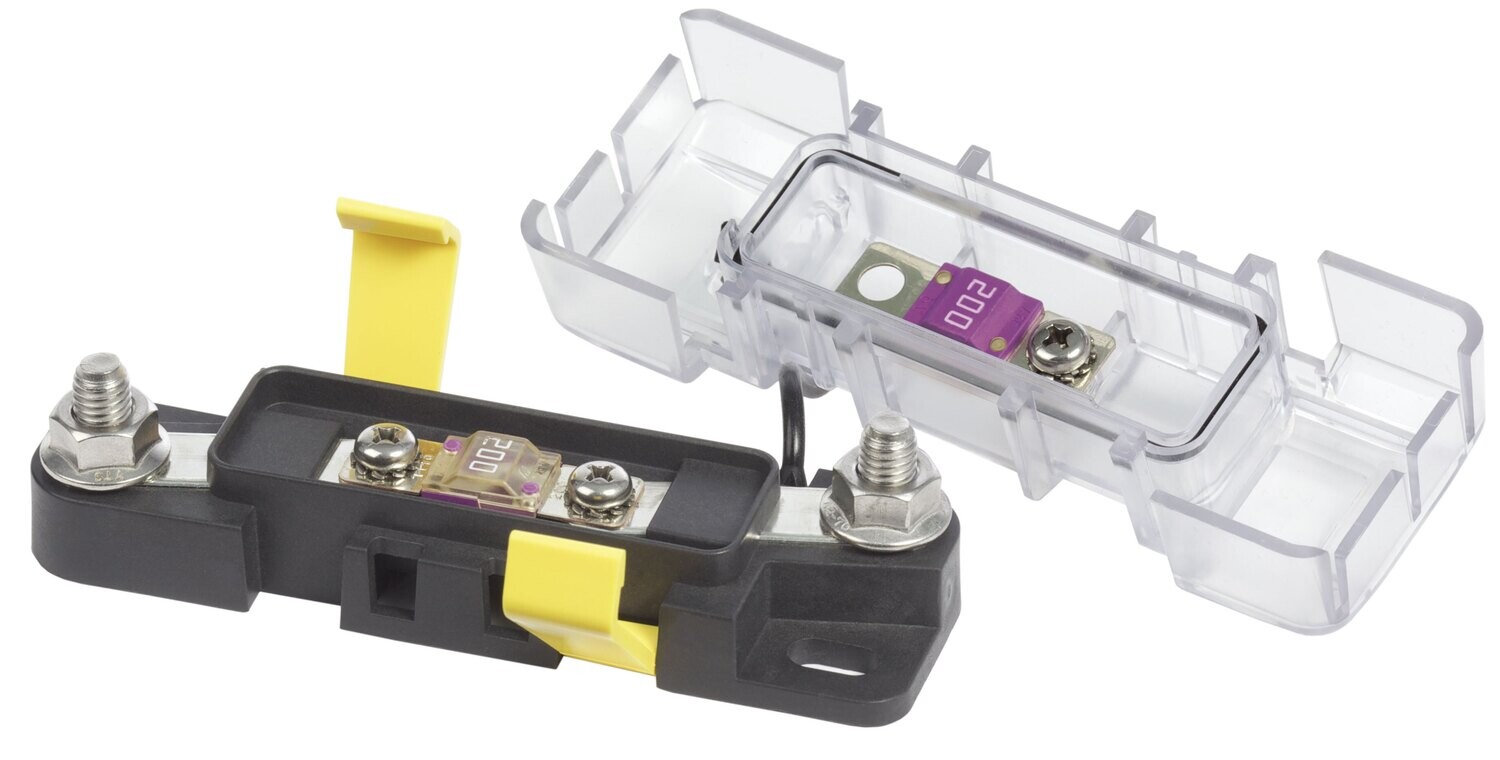

AMI / MIDI Safety Fuse Block - 1 Fuse
Product Details
Brand:
Unknown
Ignition protected for installation aboard gasoline or diesel powered boats
Sealed cover protects fuses from the harsh marine environment
Insulating cover satisfies ABYC/USCG insulation requirements
Cover breakouts allow wire access in any direction
200A maximum with 4/0 cable
Accepts Blue Sea Systems Square Format standard or custom label
Fuses sold separately
SpecificationsMaximum Amperage 200A
Maximum Voltage32V DC
Stud SizeM8 x 1.25
Fuse ScrewM5 x 0.8
Recommended Screw Torque27 in-lb (3.05 N·m)
Recommended Stud Torque120 in-lb (13.56 N·m)
Ring Terminal SizeM8 (5/16")
Weight0.15lb (0.07 kg)
