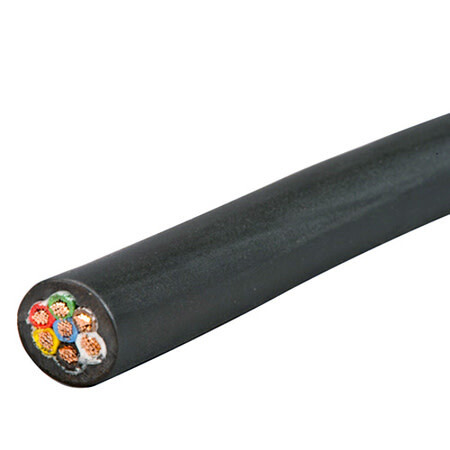

7 Way Wire Bargman (By The Foot)

Heavy duty black multi-conductor cable rated to -10° C.

Wire gauges: 2-10 / 1-12 / 4-14 (Black and White =10 gauge; Blue = 12 gauge; Brown, Red, Green, Yellow = 14 gauge)

Trailer cable, also known as trailer wire, is manufactured of multiple general purpose (GPT) wire conductors covered by an outer flexible PVC jacket. The internal primary wires are single conductor and are color-coded to industry standards. Trailer wire is ideal for wiring trucks and trailers due to its durability and high resistance to cracking, abrasion, oil, acid and natural elements. Choose 7 wire trailer cable for ABS applications. Order by the foot.

• 7 conductor trailer cable consists of seven (7) wire in various combinations of gauge size to accommodate a wide variety of applications. Single conductors are stranded copper, and are color-coded for identification purposes.
• 2- 10 Gauge wires (Black and White)
• 1- 12 Gauge wire (Blue)
• 4- 14 Gauge wires (Brown, Red, Green, Yellow)
• Temperature Rating: -40°F to 185°F, -40°C to 85°C
