5200-7000# Tandem Axle Hanger Kit with 3.25" Bolts 9/16"

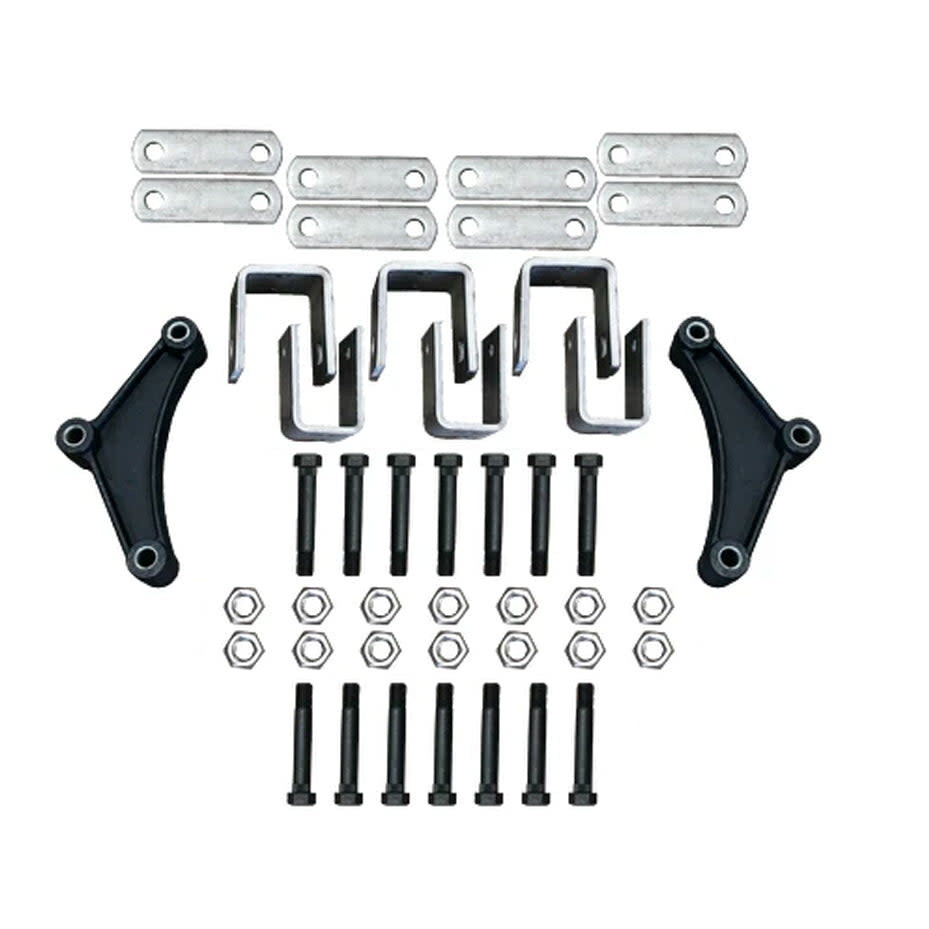

5200-7000# Tandem Spring Axle Hanger Kit includes:

• 6- 3 1/4" Steel Hangers 3"X4" - 1 7/8"-wide opening
• 2- EQ-E1 7.75" Equalizers
• 8- Shackles
• 14- Shackle Bolts with Nuts

 Shackles Are:

• 3 1/2" long X 1 1/4" Wide X 3/16" Thick

• Holes are 2 1/4" centered apart and measure 9/16" in Diameter

 Hangers measure:

• 4" Long X 3" Wide X 2 1/4" Thick

• Holes on bottom are 1 3/4" centered and 5/16" in diameter

• Holes on end are centered 1 1/2" side to side and 15/16" from the end of Hanger and 9/16" in diameter
