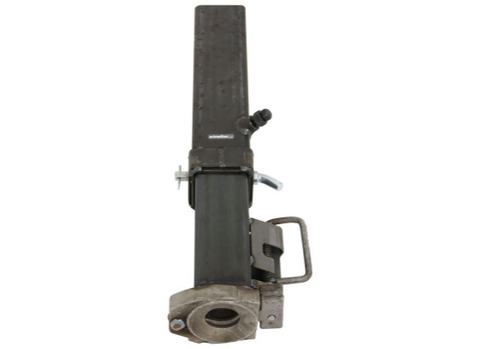

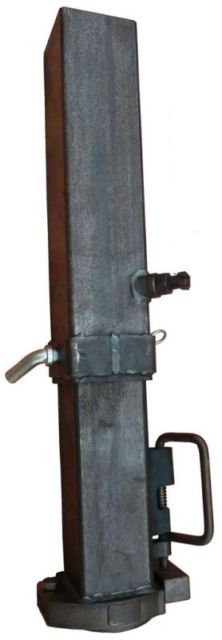

Gooseneck coupler fits a 2-5/16" ball and has 8" of adjustment to fit your application. The curved internal ball clamp creates a tight fit for the hitch ball. A protected hidden spring latch is durable and easy to use.
Features:
- Gooseneck coupler lets you hook your gooseneck trailer up to your tow vehicle
- Curved internal ball clamp secures hitch ball and provides a strong, tight fit

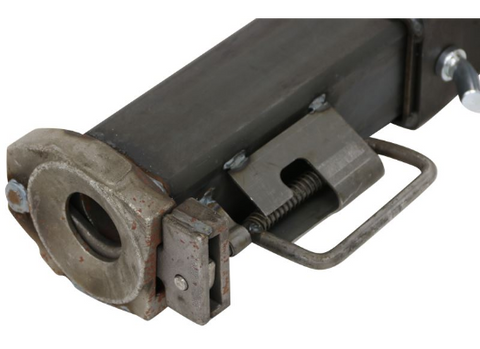

- Spring-loaded handle for easy hookup

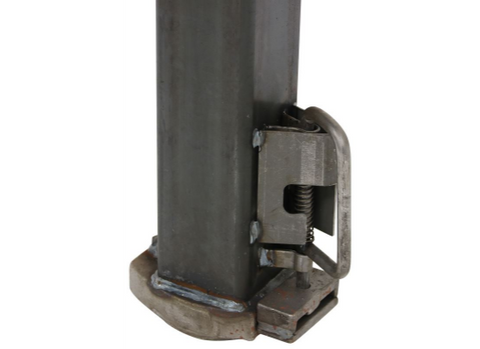

- Hidden spring latching mechanism protects moving parts
- 1 Set screw secures inner tube at desired height
- Belly band on bottom of outer tube adds strength and durability
- Low-profile design gives a sleek appearance
- Sturdy steel construction
- Load-bearing pin included
- SAE J2638 certified
- Weld-on installation
- Outer tube welds directly to your gooseneck trailer
Specs:
- Ball size: 2-5/16"
- Range of vertical adjustment: 8"
- Height:
- Retracted: 32"
- Extended: 40"
- Outer tube width: 4-1/2"
- Inner tube width: 4"
- Inner tube wall thickness: 0.24"
- Hole spacing: 2-11/16" from center of hole to center of hole
- Hole diameter: 7/8"
- Weight capacity: 25,000 lbs
GCSQ-25008 Ram Gooseneck Coupler w/ Load Bearing Pin - 8" Adjustment - Square - 2-5/16" Ball - 25K
