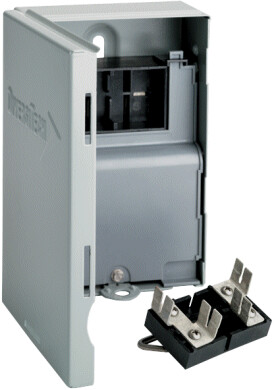

Pull-Out Disconnect Switch with Side Opening Door (DDS-60)

Features & Benefits

• Fused model designed with fuses in pull-out handle for easy replacement
• The line, load and ground terminals are aligned for ease of wiring
• This product has a reversible door which opens to either the left or right
• The side open door opens more than 180 degrees for maximum access and has a full dead front
• The fused models have indicator lights for blown fuses
• This is rain tight and sleet resistant

Specifications

• Type: Pull-Out
• Voltage Rating: 240 Volt AC
• Current Rating: 60 Amp
• Power Rating: 10 HP
• Fuse Provision: Fusible
• Enclosure: NEMA 3R
• Enclosure Material: Metal
• Approval: UL (Canada and US)
• Application HVAC Circuitry
