Product description:

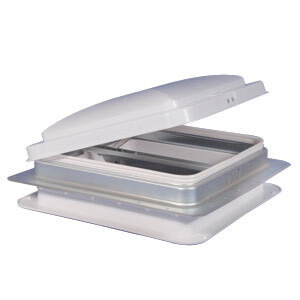

Universal RV Roof Vent w/ 12 volt Powered Fan and White Lid Heng's Part # 71112-C
- LID COLOR: White
- REMOVABLE SCREEN: made from strong, fine mesh, allows air to flow through, keeps bugs out
- HANDLE: Manual Crank Style - Metal
- **12 VOLT POWER ONLY** 110/115/220 volt such as in a house or generator will damage the unit
- FAN MOTOR 12 volt
- FAN BLADE 6"
- ON/OFF SWITCH Push Button Style
- ROUGH CUT-OUT OPENING DIMENSIONS (this is the hole you will need in your roof) 14 1/2” X 14 1/2”
- ROOF FLANGE Steel with White Finish
- EXTERIOR MOUNTING FLANGE DIMENSIONS (sits on the top of your unit) 16 1/2” X 16 1/2” WARNING **** All Vent Metal Flanges are VERY SHARP use caution when touching **** WARNING 1” OEM INSIDE GARNISH SHROUD Part #90090 (not included) Trim ring slides into track built-into screen housing 1 1/8” Vertical Leg (How far up into your ceiling it goes) 1 1/4” Wide Mounting Flange (trim you see inside) COLOR white NO MOUNTING HARDWARE you must provide caulk/putty and screws WARNING*** Vent Flanges are VERY SHARP - USE CAUTION when touching ***WARNING
- Light and power life Features: exclusive self-centering device eliminates installation guesswork, assures perfect alignment in roof opening
- Attractive radius corners are standard
- Positive-seal weather stripping is leak-resistant and weather-tight
- NO MOUNTING HARDWARE you must provide caulk/putty and screws
- ROUGH CUT-OUT OPENING DIMENSIONS (this is the hole you will need in your roof) 14 1/2” X 14 1/2”
- EXTERIOR MOUNTING FLANGE DIMENSIONS (sits on the top of your unit) 16 1/2” X 16 1/2”
- Strong Fine Mesh Screen
- 12 Volt Fan with 6 Blades
- Extra Strong Galvanized Steel Roof Flange with Mill Finish
- Vent Color is White
