The LGP6-150 Gas Strut provides 40 lb of force to assist with opening and supporting compatible lids, hatches, and compartment doors. With a 15" extended length and a 5.5" stroke, this gas strut is suitable for matching lift-support applications on RVs, campers, and equipment covers. Standard 10 mm ball-socket ends connect to compatible mounting hardware.
Specifications
-
Model: LGP6-150 40
-
Force: 40 lb
-
Extended Length: 15"
-
Compressed Length: 9.5"
-
Stroke: 5.5"
-
Rod Diameter: 6 mm (approximately 0.236")
-
Body Diameter: 15 mm (approximately 0.591")
-

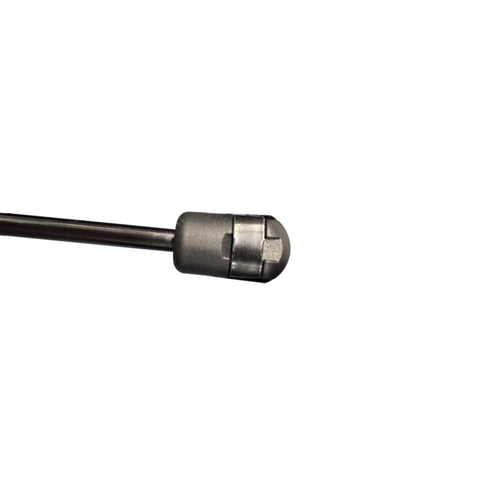

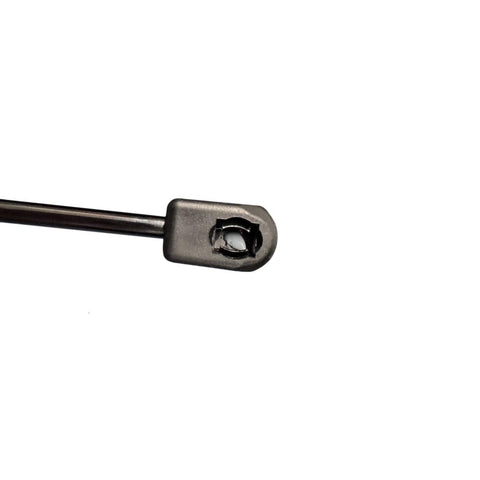

Mounting Ends: Standard 10 mm ball
Applications
Ideal for use in the following applications when the dimensions, mounting ends, and force requirements match:
-
RV and camper compartment doors
-
Small equipment covers
-
Lightweight hatches
-
Toolboxes and storage containers
Compatibility
Before ordering, compare the extended length, compressed length, mounting ends, and force rating with your existing gas strut to confirm proper fit.
