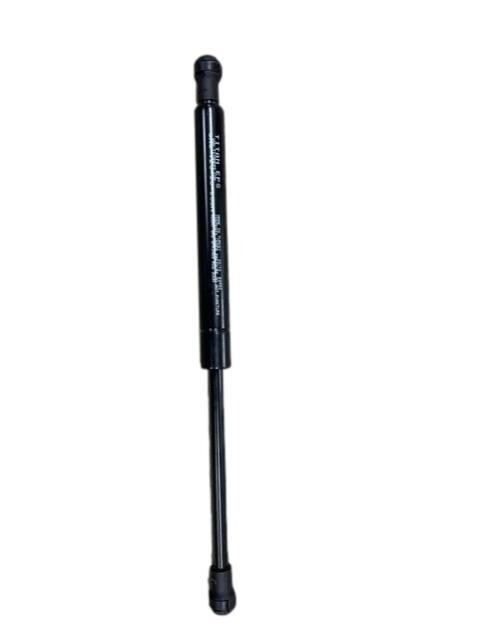

Gas Strut GN8-120-50 50# Force

Gas Strut GN8-120-50 50# Force is a high-quality, versatile gas spring designed for various applications, including RV hatches, covers, and light to medium-duty equipment. Here are the key features and specifications:

Key Features

• Black nitride shaft for enhanced corrosion resistance
• Suitable for hatches, covers, RVs, and campers
• Standard 10mm ball socket ends for easy installation
• Reliable performance in various environmental conditions

Specifications

• Extended length: 12.00 inches (304.8 mm)
• Stroke: 3.50 inches (88.9 mm)
• Force: 50 pounds (222.4 N)
• Rod diameter: 8 mm
• Body diameter: 18 mm

This gas strut combines durability with smooth operation, making it an excellent choice for applications requiring controlled lifting and lowering. The black nitride coating on the shaft provides superior corrosion resistance, ensuring long-lasting performance even in challenging environments.

Compatible with various brands, this strut can serve as a direct replacement for multiple manufacturers. Its versatility and standard 10mm ends make it suitable for both DIY enthusiasts and professional applications.

When selecting this gas strut, consider that the ideal length should be 50% to 66% of the door or hatch height it will support. For optimal performance, mount the strut 20% to 30% of the door height from the hinge point.
