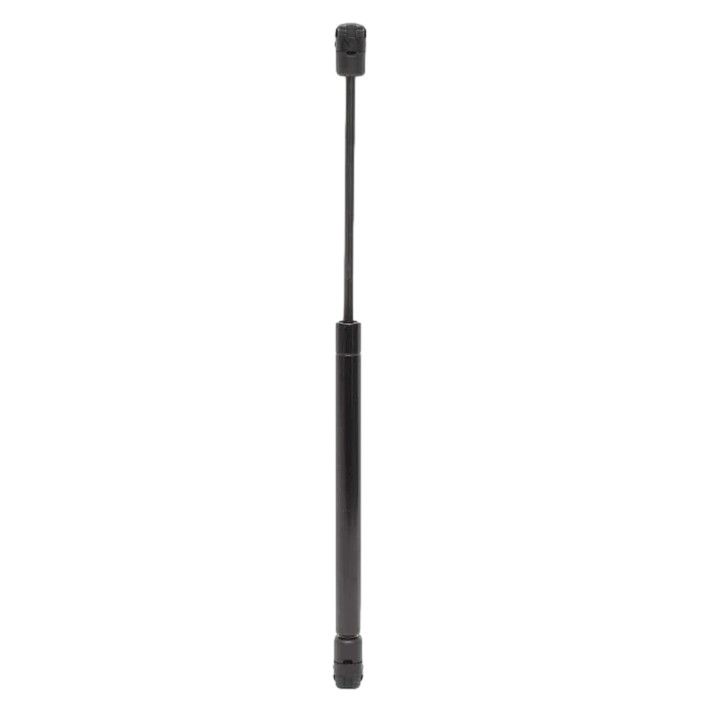

Gas Strut GN8-075 60# Force

Gas Strut GN8-075 60# Force is a high-quality, versatile gas spring designed for various applications, including RV hatches, covers, and light to medium-duty equipment. Here are the key features and specifications:

Key Features

• Black nitride shaft for superior corrosion resistance
• Suitable for hatches, covers, RVs, and campers
• Standard 10mm ball socket ends for easy installation
• Reliable performance in various environmental conditions

Specifications

• Extended length: 7.50 inches (190.5 mm)
• Stroke: 2.00 inches (50.8 mm)
• Force: 60 pounds (266.9 N)
• Rod diameter: 8 mm
• Body diameter: 18 mm

This gas strut combines durability with smooth operation, making it an excellent choice for applications requiring controlled lifting and lowering. The black nitride coating on the shaft provides enhanced corrosion resistance, ensuring long-lasting performance even in challenging environments.

When selecting this gas strut, consider that the ideal length should be 50% to 66% of the door or hatch height it will support. For optimal performance, mount the strut 20% to 30% of the door height from the hinge point.
