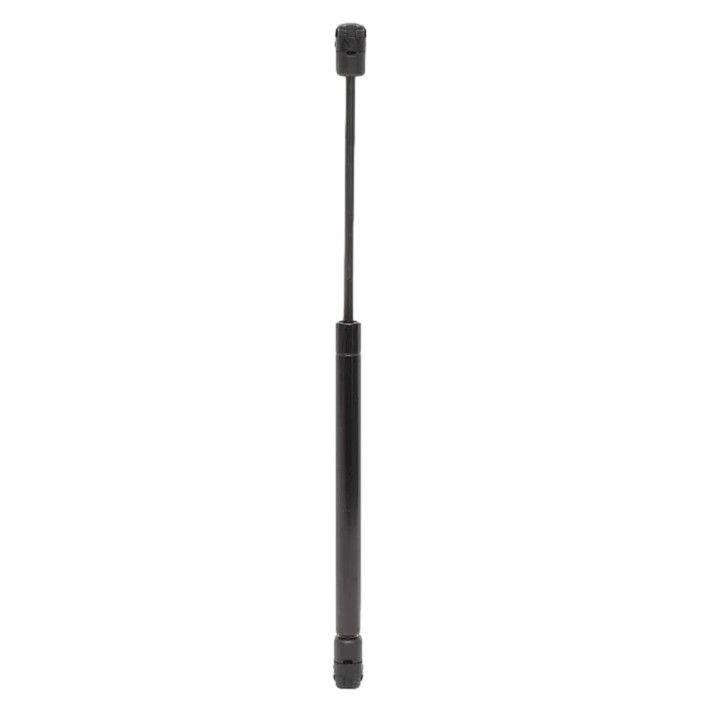

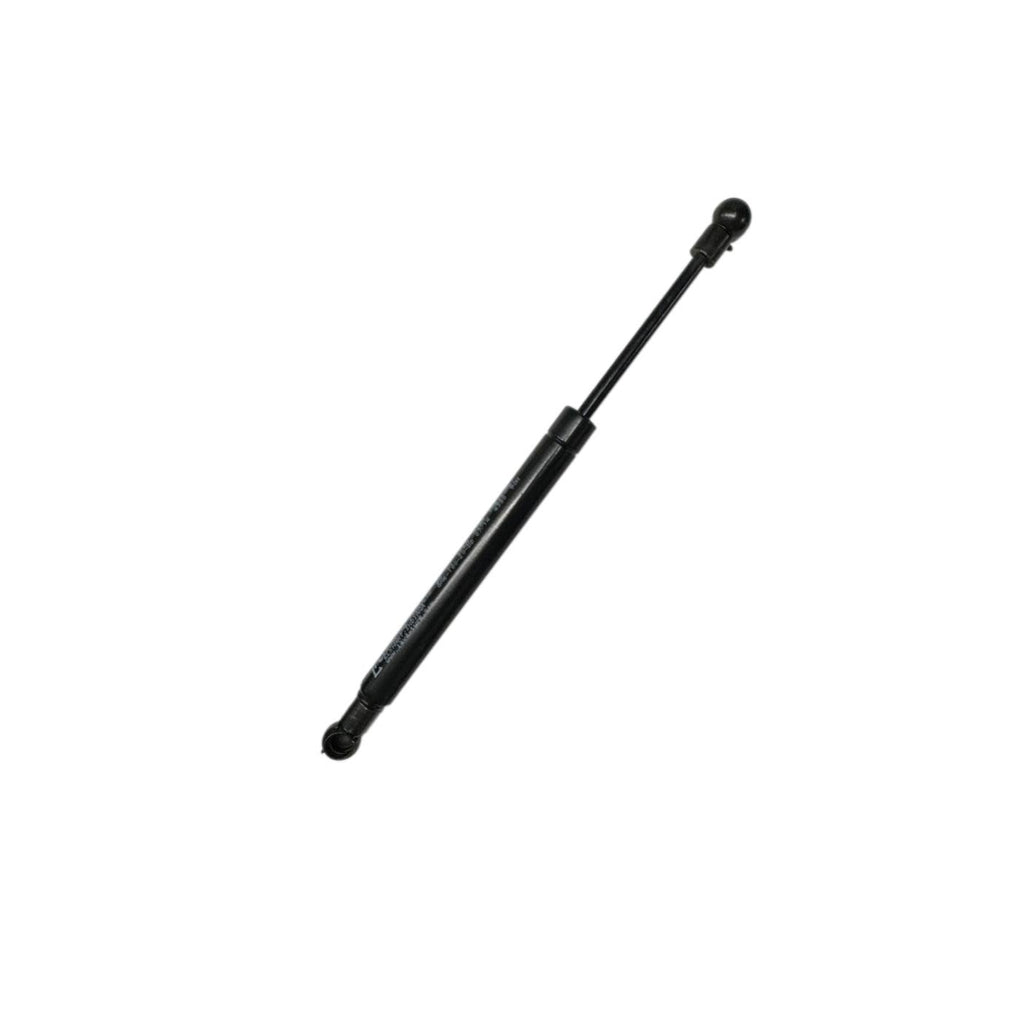

Gas Strut GN6-100 20# Force

Gas Strut GN6-100 20# Force is a reliable and efficient gas spring designed for a variety of applications, including RV hatches, covers, and light-duty equipment. Here are the key features and specifications:

Key Features

• Black Nitride Shaft: Offers enhanced corrosion resistance for durability in various environments.
• Standard 10mm Ball Socket Ends: Ensures easy installation and compatibility with a wide range of applications.
• Versatile Applications: Ideal for RVs, campers, automotive uses, and other settings requiring controlled lifting and lowering.

Specifications

• Extended Length: 10.00 inches (254 mm)
• Stroke: 3.00 inches (76.2 mm)
• Force: 20 pounds (88.96 N)
• Rod Diameter: 6 mm
• Body Diameter: 15 mm

This gas strut is engineered for smooth operation and dependable performance, making it an excellent choice for applications that require consistent support. The black nitride coating not only enhances corrosion resistance but also contributes to the overall aesthetic appeal of the strut.

When selecting the GN6-100 20# gas strut, ensure that the extended length is appropriate for your specific application. Proper installation is crucial for optimal performance, so consider mounting it at the correct angle and position relative to the hatch or cover it will support.
