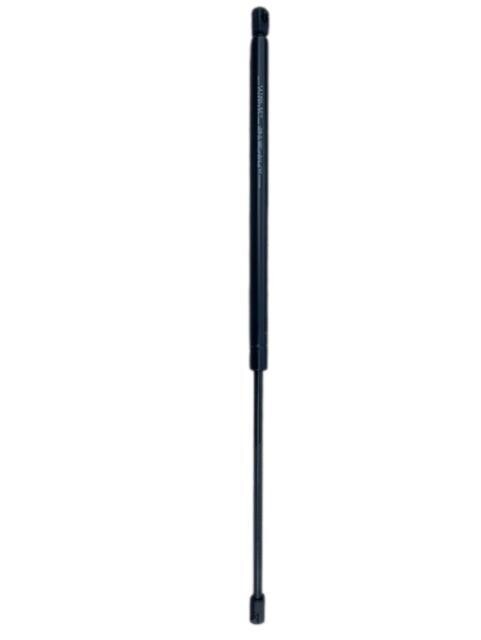

Gas Strut GN10-263-250# Force

Gas Strut GN10-263-250# Force is a heavy-duty gas spring designed for applications requiring significant force and extended length. Here are the key features and specifications:

Key Features

• Black nitride shaft for superior corrosion resistance
• Durable construction for long-lasting performance
• Ideal for large hatches, covers, and heavy doors in RVs and industrial equipment
• Standard end fittings for easy installation

Specifications

• Extended length: 26.30 inches (668.02 mm)
• Stroke: Approximately 10-11 inches (based on similar models)
• Force: 250 pounds (1112.55 N)
• Rod diameter: 10 mm
• Body diameter: Approximately 22 mm (estimated based on similar models)

This gas strut combines reliability with exceptional durability, making it suitable for applications requiring controlled lifting and lowering of heavier loads. The black nitride coating on the shaft provides enhanced corrosion resistance, ensuring long-lasting performance even in challenging environments.

When selecting this gas strut, consider the weight and size of the object it will support. For optimal performance, ensure proper mounting positions and angles during installation.
