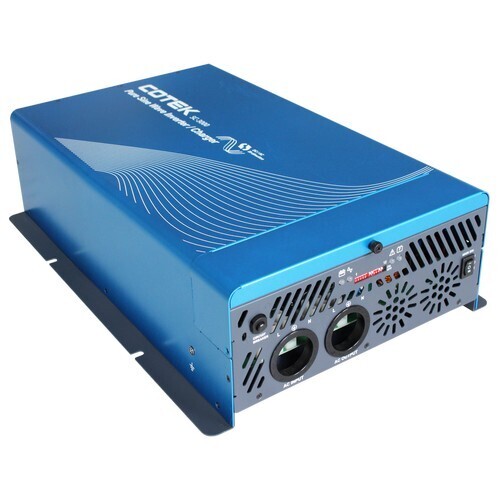

Cotek Gemini Inverter / Charger 3000W (SC-3000-112)

SC-3000 Features

• Bi-directional inverter/charger.
• Automatically various operating modes:
  1. Inverter mode.
  2. Charger mode.
  3. Power Sharing.
  4. Power Generation.
  5. Power Support
• 3 charging stages with the max charging current up to 150A.
• Certified UL458, FCC Class A, CE EN62368-1, e-Mark.
• Full load from -20℃ to 40℃ without power derating.
• High Power Density (3000W @ 9.6 kg / 21.2lbs).
• Charging Compensation via the temperature sensor.

Specification

MODEL: SC-3000-112

Main Features:

• All in one design: Bi-directional inverter/charger
• Certified UL458, FCC Class A, CE EN62368-1, e-Mark
• High Power density (3000W @ 9.6 kg / 21.2lbs)

AC Output Voltage: 100/110/115/120VAC ± 3%

Rated Power: 3000VA

Surge Power: 6000VA

Output Waveform: Pure Sine Wave (THD < 5% @ 12.5V/25V/115VAC, linear load) / (THD < 3% @ 12.5V/25V/230VAC, linear load)

Frequency: 50/60 Hz ± 0.3 Hz (User-selectable)

DC Output Voltage: ─

DC Output Voltage Range: ─

DC Input Voltage: 12V; 24VDC Input Voltage Range10.5 ~ 16.5 VDC; 21 ~ 33 VDC

Efficiency: >89%

Operating Temperature: Full Load from -20°C to 40°C, Power De-rating from 41°C to 60°C

Storage Temperature: -30 ℃~70 ℃

Safety: UL458, FCC Class A, EN62368-1, e-Mark CISPR 25, EN55032 Class A, EN55035 Class A, EN61000-3-2, -3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11

Dimension: (WxHxD)314 x 127.4 x 508.8mm

Weight: (Net)9.6 Kg / 21.2lbs
