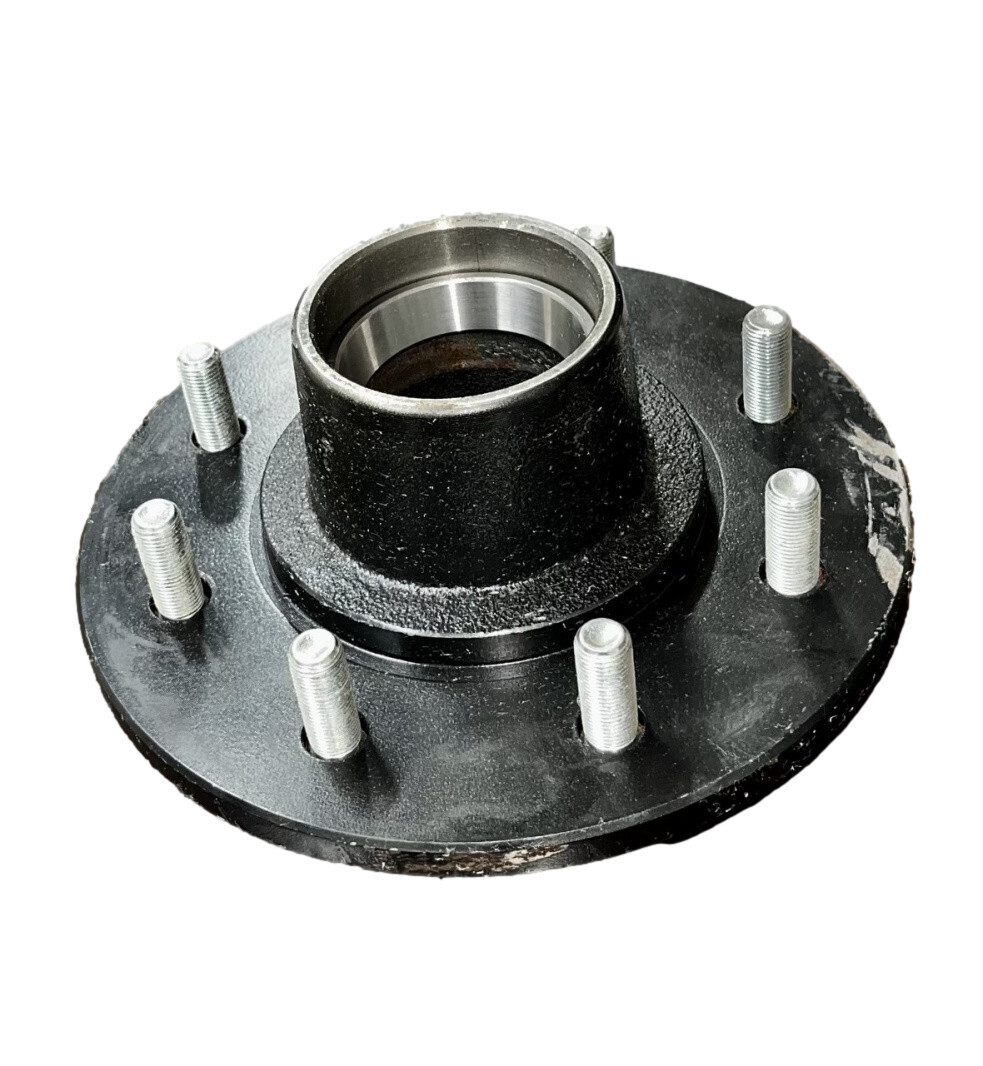

7000# Axle Idler Hub 8 on 6.5"

Features:

•  7K Idler Hub 8 on 6 1/2" Bolt Pattern Inner and Outer races included
•  All studs are ½-20
•  Manufactured to automotive standards in ISO/TS-16949 Registered Factory
•  Fully integrated casting, machining, painting, and assembly operations.
•  Mechanical die compression for superior sand compression.
•  ASTM test bar method used to monitor tensile strength.
•  Inspected 100% before painting including the races for proper seating.
•  Drums are chemically cleaned and painted black in electrostatic booth
•  QAI and CSA certified

       Specs:

• Application: 7,000-lb trailer axles with #42 spindles
• Compatible with standard axles from most manufacturers, including Dexter and Lippert (LCI)
• Wheel size: 16" to 18-1/2"
• Bolt pattern: 8 on 6-1/2"
• Wheel stud dimensions: 1/2" diameter x 1-1/4" long
• Grease cap flange diameter: 2.722"
• Weight capacity: 3,500 lbs
