Dimensions: Flange Mount - 8.00"x 3.25"x 1.37"

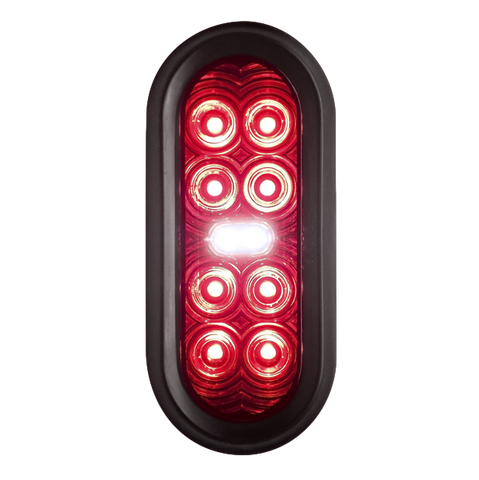

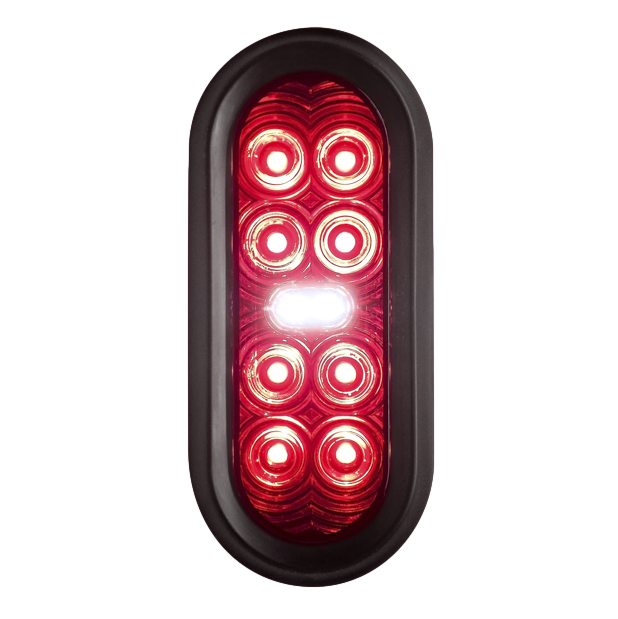

Grommet Mount - 6.45"x 2.22"x 1.48"
Surface Mount - 7.5"x 3.3"x 1.65"
FEATURES
- Save time and money with our new combination Stop/Tail/Turn and Reverse Light
- Price reflects cost for a single LED Light.

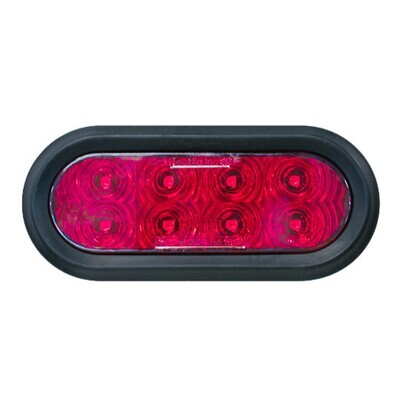

- Flange Mount - 8.00"x3.25"x1.37"
- Fits all standard 6” oval applications
- Fits standard mounting holes
- 360° optics allow lights to be mounted at any angle
- High intensity function only draws 0.14A at 12VDC
- Reverse function uses an additional 0.30A
- Dual Amp Connector
Wire Colors:
White Wire Ground
Yellow Wire Reverse Function
Red Wire Brake Function
