Grommet Mount - 6.473"x 2.218"x 1.47"
Surface Mount - 7.55"x 3.29"x 1.47"
Features:

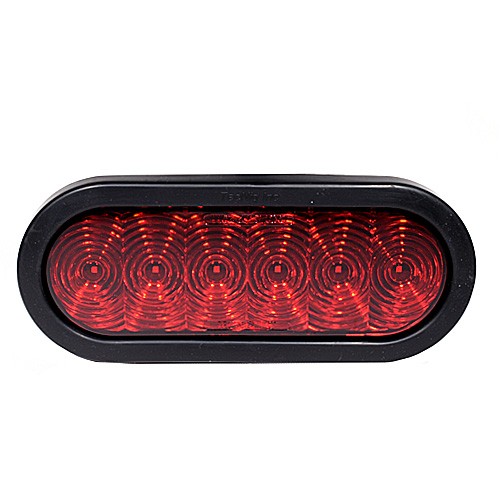

- Smooth surface, great looking Stop/Tail/Turn Light
- Durable impact resistant lens
- Fit all industry standard 6" oval applications
- Available in grommet or surface mount
- Can be mounted horizontal, vertical, or at any angle
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated - Dust and water proof with hermetic seal
- Meets all FMVSS 108 requirements for wide and narrow vehicles
- Reliable performance over 100,000 hours
- LEDs: 6
- Voltage: 9 - 14V DC
- Current: 0.17A-0.28A
- Colored lens:
0.12A-0.16A Red/Clear
0.12A-0.16A Amber/Clear
0.21A-0.27A White - Mounting: Fits standard mounting holes
- LED Colors: Red • Amber • White

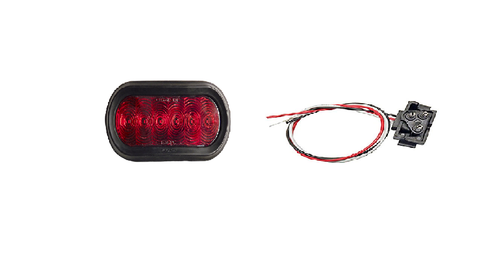

Wire Colors:
White Wirered/amber stripe Ground
Red Wire Brake
Black WireTail Light
